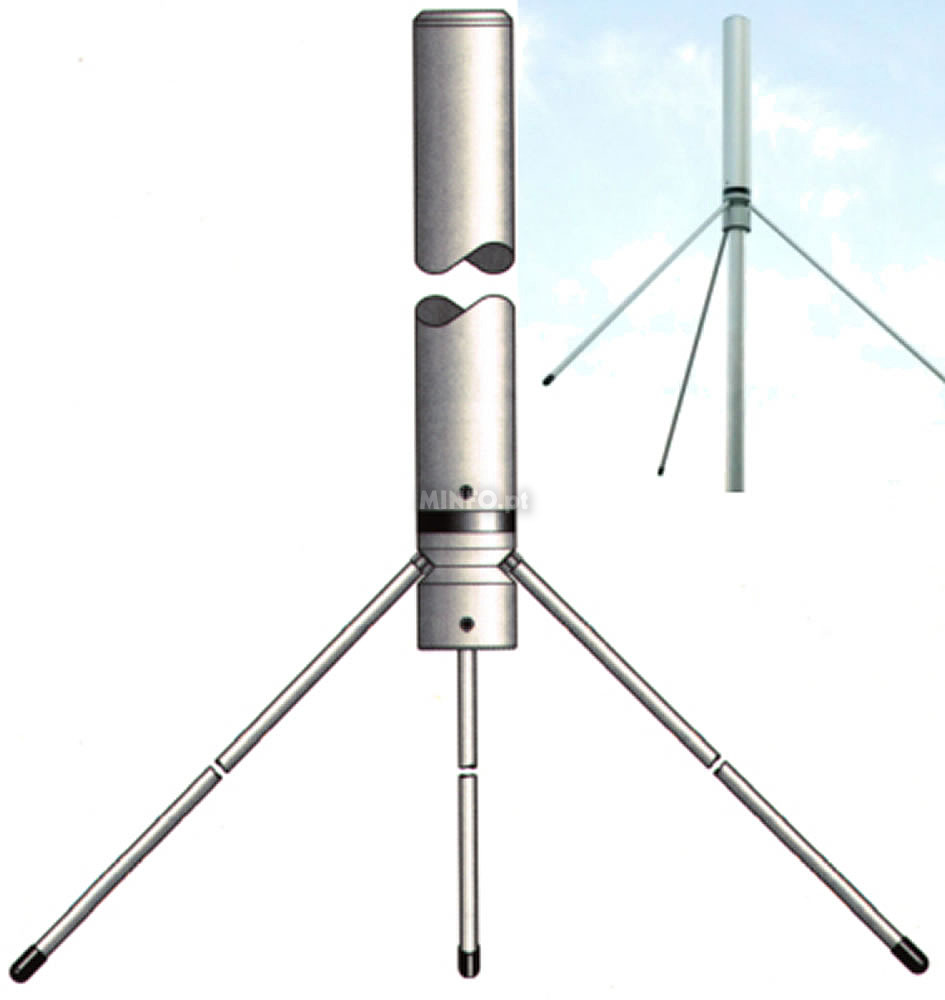

ANTENA BAZOWA VHF SIRIO GP 76-88
|
|
- Dostępność:
- dostępny
|
|
Cena:
185,00 zł
Cena netto:
150,41 zł
|
- Producent:
-
Features:
|
- |
Base station antenna, Wide-band |
|
- |
Unity-gain, Omnidirectional |
|
- |
Protection from static discharges DC-Ground |
|
- |
Perfect protection against the worst weather conditions |
|
- |
Made of anodized aluminium alloy |
|
- |
Stainless steel hardware |
|
- |
Side mast mounting allowed by optional bracket FT-2 code 2510004.00 |
Part Numbers:
P/N 2105601.00 GP 66-78 LB-U
P/N 2105701.00 GP 76-88 LB-U
P/N 2105601.00/N GP 66-78 LB-N
P/N 2105701.00/N GP 76-88 LB-N
|
|
|
Electrical Data |
|
- |
Type: 1/4λ ground plane large band |
|
- |
Frequency range SWR ≤ 2:
GP 66-78 LB: 66-78 MHz
GP 76-88 LB: 76-88 MHz |
|
- |
Impedance: 50Ω |
|
- |
Radiation (H-plane): 360° omnidirectional |
|
- |
Radiation (E-plane): beamwidth @ -3 dB = 78° |
|
- |
Radiation angle: 0° |
|
- |
Polarization: linear vertical |
|
- |
Gain: 0 dBd - 2.15 dBi |
|
- |
Max. Power (CW) @ 30°C: 1000 Watts |
|
- |
Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short |
|
- |
Connector:
GP 66-78/ 76-88 LB-U: UHF-female
GP 66-78/ 76-88 LB-N: N-female |
|
|
|
|
Mechanical Data |
|
- |
Materials: Anodized Aluminium, Stainless Steel, Nylon |
|
- |
Wind load / resistance:
GP 66-78 LB: 98 N @ 150 Km/h / 130 Km/h
GP 76-88 LB: 85 N @ 150 Km/h / 130 Km/h |
|
- |
Wind surface:
GP 66-78 LB: 0.09 m²
GP 76-88 LB: 0.07 m² |
|
- |
Height (approx.):
GP 66-78 LB: 1640 mm
GP 76-88 LB: 1400 mm |
|
- |
Weight (approx.):
GP 66-78 LB: 1930 gr
GP 76-88 LB: 1710 gr |
|
- |
Radial length (approx.):
GP 66-78 LB: 1160 mm
GP 76-88 LB: 1030 mm |
|
- |
Mounting mast: Ø 36-40 mm |
|
